Flipsky 200A Anti Spark Switch Aluminum PCB/CASE V1.0 for Electric Skateboard, Ebike, Scooter & Robots - Perfect for DIY EV Projects, Power Control & High-Current Applications
Free shipping on all orders over $50
7-15 days international
6 people viewing this product right now!
30-day free returns
Secure checkout
44458396
Description
Spec:Hardware: V1.0Max voltage: 20S (90V，safe for 80V)Continuous Current: 80A .Max Current: 200A((It is better to increase bigger heat sink)Burst current 1000A(theoretical current)LED button diameter:12mmSize:68mm*34mm*9.5mm(12AWG Wire)Aluminum pcb Features:MOS fets: use 10*10 large package MOS , with better overcurrent and heat dissipation performanceControl mode: lock key control switch mode; press the lock button to lock it to open, and the LED light will light up at the same time, press the lock button again to bounce it to turn off, and the LED light turn off at the same time.The function of the product: the aluminum substrate fire-proof spark switch efficiently and safely protects the power contacts from being burnt and oxidized by the electric spark, effectively protecting the electronic components of the integrated circuit from breakdown and damage, preventing the occurrence of electric sparks that may cause an explosion, and more effectively extending the electronics Product life.Aluminum base plate has better heat dissipation performance. It is more convenient to add a larger heat sink for continuous large current output. The heat sink and the heat sink are connected with thermally conductive silicone grease, which has a better heat conduction effect.
Features
MOS fets use 10*10 large package MOS , with better overcurrent and heat dissipation performance
Max voltage 20S (90V，safe for 80V).Continuous Current 80A.
Max Current 200A((It is better to increase bigger heat sink) Burst current 1000A(theoretical current)

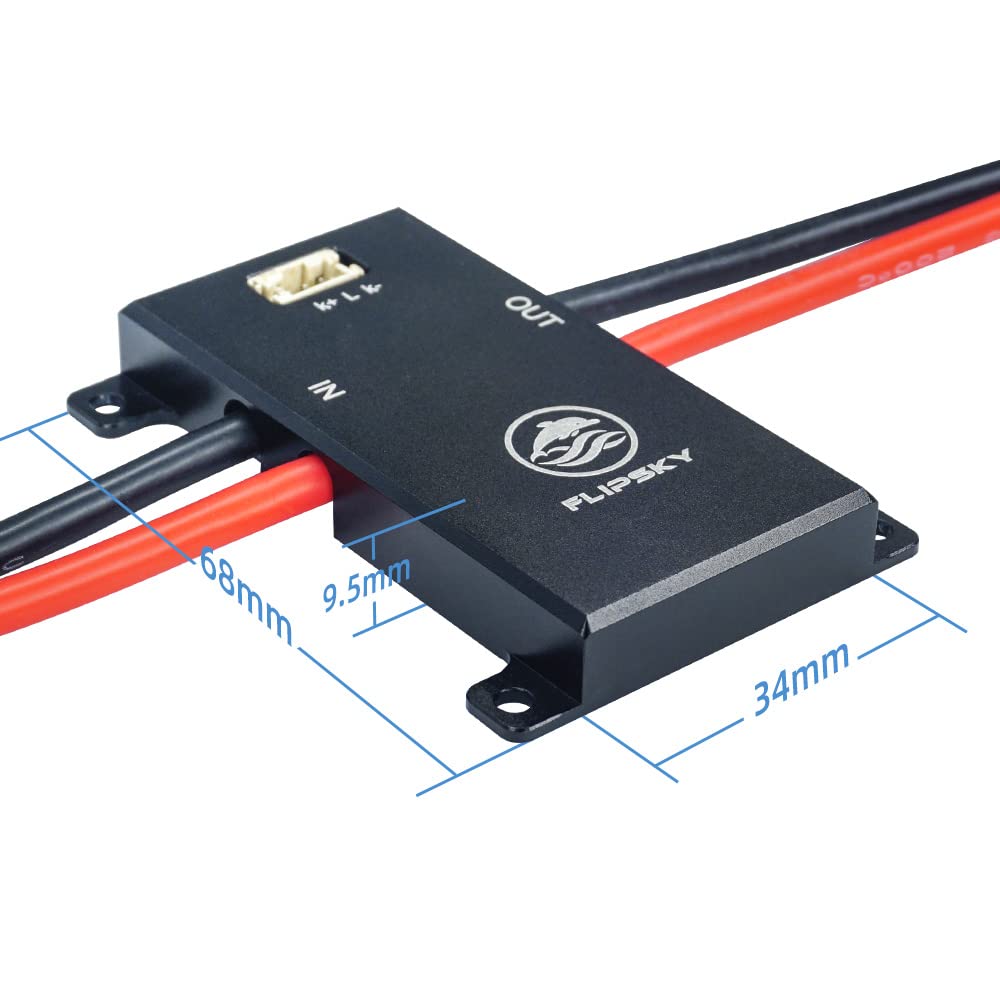

Size68mm*34mm*9.5mm(12AWG Wire).LED button diameter12mm

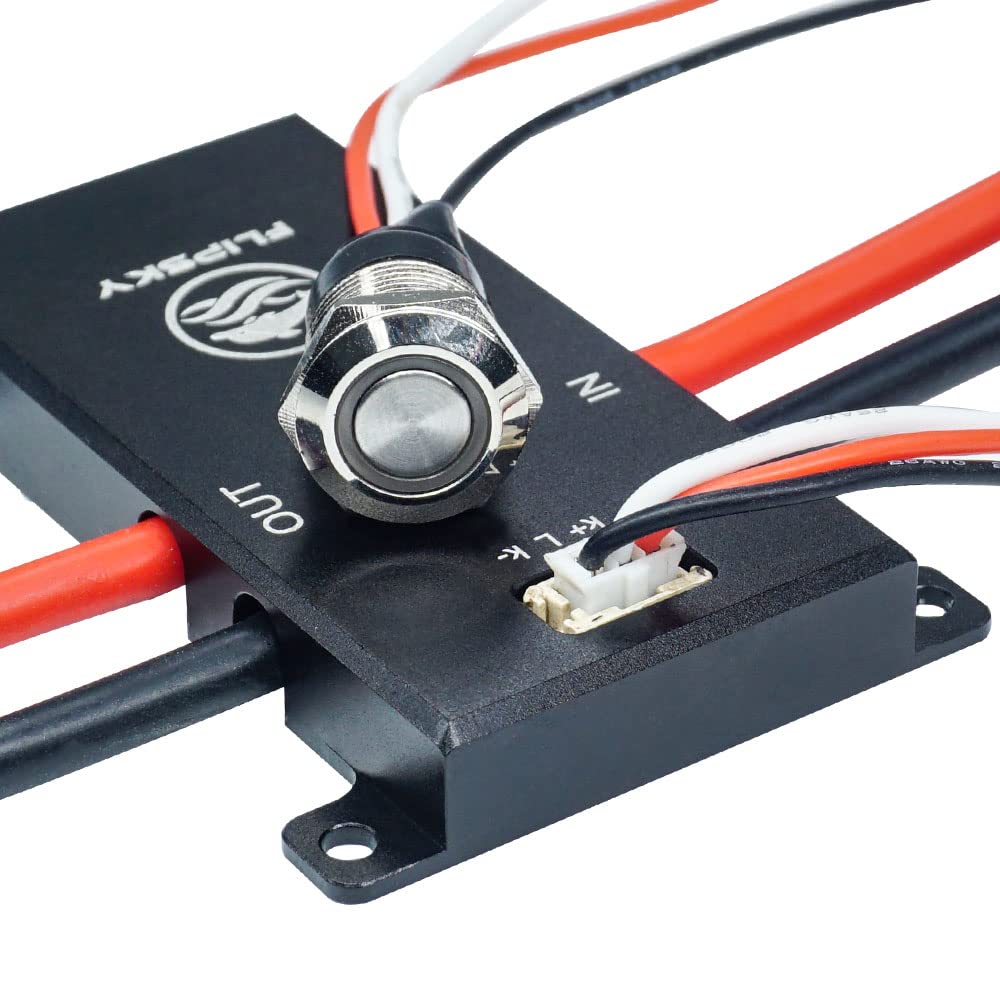

Control mode lock key control switch mode; press the lock button to lock it to open, and the LED light will light up at the same time, press the lock button again to bounce it to turn off, and the LED light turn off at the same time.
The function of the product the aluminum substrate fire-proof spark switch efficiently and safely protects the power contacts from being burnt and oxidized by the electric spark, effectively protecting the electronic components of the integrated circuit from breakdown and damage, preventing the occurrence of electric sparks that may cause an explosion, and more effectively extending the electronics Product life.

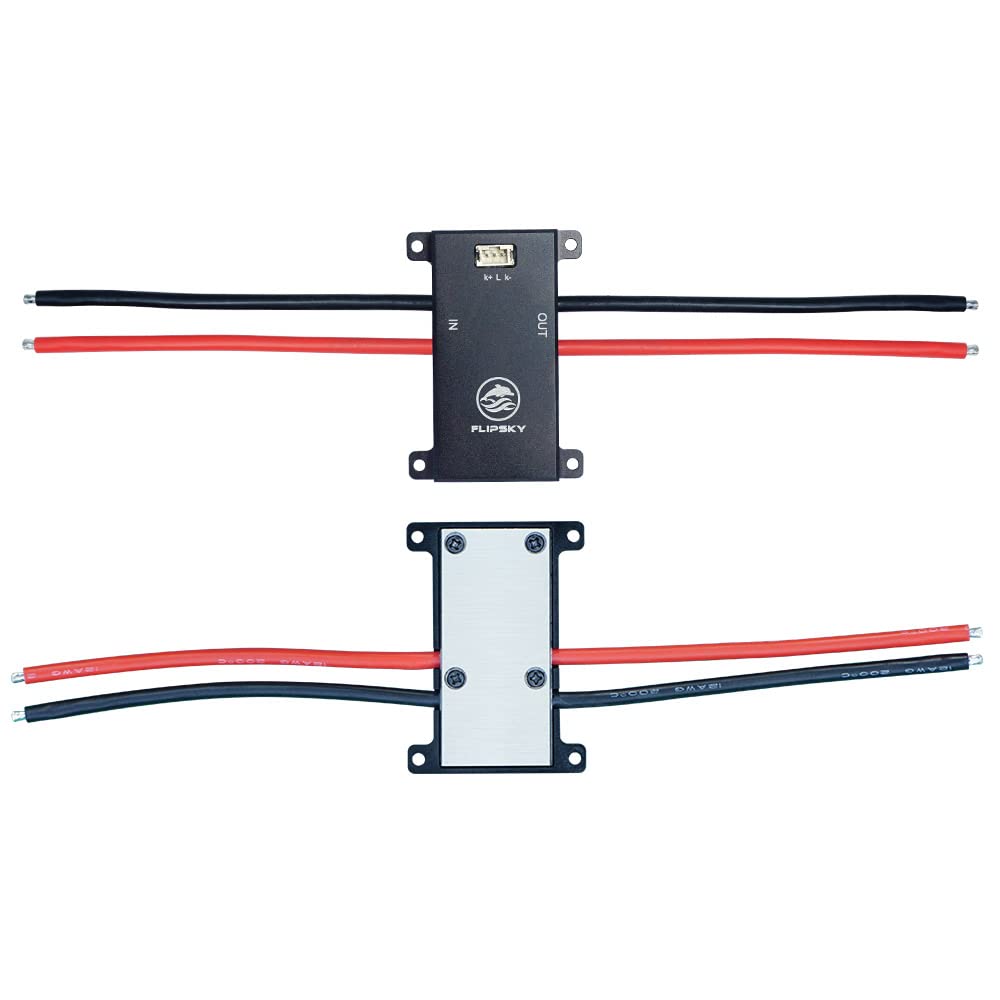

Aluminum base plate has better heat dissipation performance. It is more convenient to add a larger heat sink for continuous large current output. The heat sink and the heat sink are connected with thermally conductive silicone grease, which has a better heat conduction effect.
